Flowers & Fruits-Rosaceae-2


The flowers on the last page are called HypOvaryIpomeaMicroLS300Lab.jpg (135951 bytes)Hypogynous
(Below the Gynoecium) because the other floral parts were inserted BELOW the Ovaries on the receptacle.

The image to the right is a long section through a Flower with a Hypogynous Ovary.The Ovaries of such flowers are said to be Superior!

Note that the Carpels of this Rubus Flower Bud occupy the Summit of the Receptacle!


Perigynous Flowers.

The word Perigynous means Around the Ovary. Perigynous flowers have a Floral Tube or Hypanthium. This is composed of two or more extra-carpellate floral parts which are fused into a common structure. Fusion of unlike floral parts is called Adnation.

The Hypanthium surrounds the Ovary but is NOT fused to it. Consequently, the other floral parts (sepals, petals & stamens) appear to originate from the Hypanthium and thus surround the Ovary.


Apricots
(Prunus sp.) come from a Perigynous Flower.


Long section through a Peach another fruit from a
Perigynous Flower.

Prunus sp. with a Perigynous Flower



Long sections through two Prunus Flower Buds: Note that the Hypanthium & the Ovary Wall are NOT fused, but the other floral parts originate from the Hypanthium above the level of the Ovary.

Wild Rose

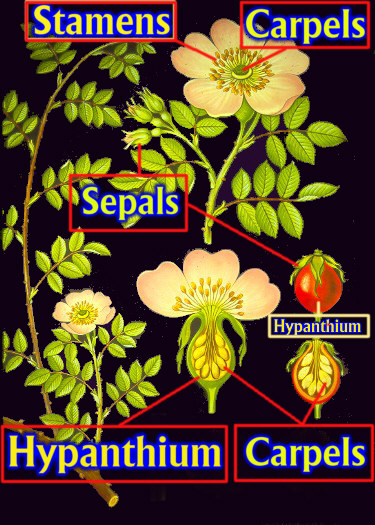

Diagram of a Wild Rose Flower & Fruit. The Hypanthium becomes fleshy in the mature fruit. The true fruits are dry Achenes. This is an Accessory Fruit in that non-floral structures are part of the "Fruit".
Wild Rose Flower & Immature Fruits

Immature & Mature Rose Fruits: The Hypanthium is the red fleshy part of the accessory fruit.


Open Rose Fruit which reveals the hairy Achenes which are the
true fruits
and the
red, fleshy Hypanthium
.

The Sepals, Petals & Stamens appear to originate from the top of the Ovary with Epigynous Flowers like those of Apple (Pyrus). Epigynous means Above the Ovary!!! This designation is due to the fact that the Hypanthium is Adnate to the Ovary Wall (Pericarp).

Apple (Pyrus) Flower: The Stigmas are hiding among the Stamens. See if you can find them!

Long section of an Apple Flower

Enlarged image of the Hypanthium and Ovary of an Apple Flower

Apples!!!!!

Consequently, the Fruits are called Accessory due to the fused Hypanthium which is part of the total "Fruit".It is the Hypanthium which forms most of the edible part of an apple. The papery layer is the innermost layer of the Ovary Wall & is called the Endocarp. The Dark line that surrounds the center of the fruit is the Outer Layer of the Ovary Wall & is called the Exocarp. The Mesocarp is the edible portion between the Exo & Endocarp.
