Axile Placentation occcurs when the Ovules of a Syncarpous Gynoecium are attached to a central Axial Structure and the Ovary is divided into two or more chambers (Locules).

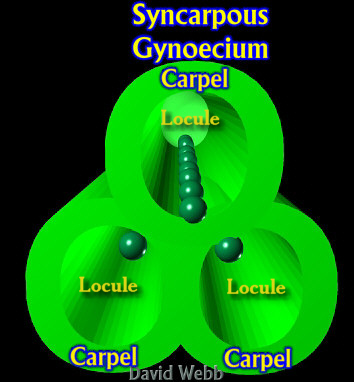

Model of a Syncarpous Gynoecium with 3 Carpels and 3 Locules & Axile Placentation

Cross Section of a Lily Ovary which has 3 Carpels with Axial Placentation
Axile Placentation in Citrus which has many Carpels & Locules

Cross Section of a Lily Ovary which has Axial Placentation with 3 Carpels & 3 Locules.

Cross Section through a Digitalis Flower Bud - The Gynoecium is in the center. Note the swollen, central Placentae and the two narrow Locules that are almost completely filled by Ovules.		 DigitalisOvaryL-SLab.jpg (64581 bytes)
Long Section through the Gynoecium of Digitalis - Note the spatial relationship between the Pericarp, Locule, Ovules and Placentae.
Same as above with the Vascular Bundles labeled. 		DigitalisX-SMostFlrModLeafPart.jpg (20989 bytes)
Cross Section of the Pericarp from Digitalis with the other tissues removed- This is very leaf-like with a large central Vascular Bundle and many smaller bundles
