WB01343_1.gif (599 bytes)    Coniferophyta Sexual Cycle -3      WB01345_1.gif (616 bytes)

  Microsporangia are also found in Cones.

Each Microsporophyll has two Microsporangia.

Microsporangiate Cone
Longitudinal section through a Microsporangiate Cone. These produce Pollen which constitutes the Microgametophyte
SEM of Pine Pollen
Pine pollen contains several cells and is the Microgametophyte. It has bladder-like Wings that make it buoyant in Air.
A Pollen Tube is produced upon Germination. Two NONflagellate Sperm are also produced. The follow the Pollen Tube to the Archergonium where Fertilization occurs. This restores the Sporophyte Generation.

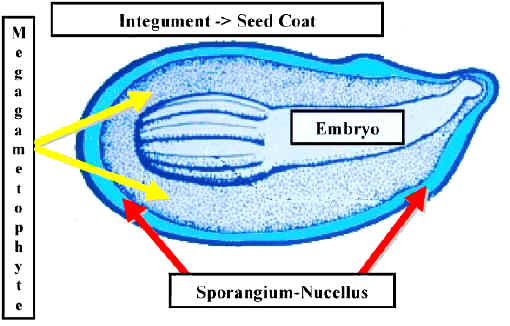

The Embryo Grows into the Megagametophyte. The Integuments become the Seed Coat.
The Embryo Has Cotyledons, a Shoot Apical Meristem, a Hypocotyl and a Root Apical Meristem.

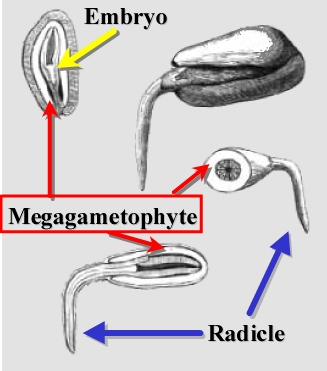

The Root is the first Organ to emerge during Germination. The hypocotyl also elongates. The Cotyledons absorb nutrients from the Megagametophyte. GermStagesLab.jpg (54263 bytes)
The Megagametophyte eventually falls away.

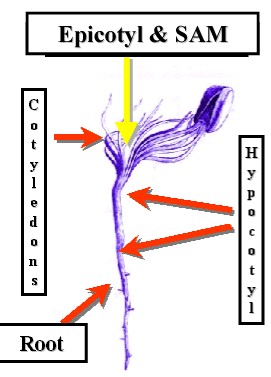

The Epicotyl forms the main axis of the Sporophyte Stem
